SOM® 62 1400

The third stage of the Kaps dental microscope series.

Free Motion magnetic brake
Ultra-bright LED lighting
Ergonomic design
div>div>:is(p,ul,ol)]:pr-4 md:[&>div>div>:is(p,ul,ol)]:pr-8 [&_pre>div]:bg-bg-300 [&_.ignore-pre-bg>div]:bg-transparent”>
_*]:min-w-0″>
div>div>:is(p,ul,ol)]:pr-4 md:[&>div>div>:is(p,ul,ol)]:pr-8 [&_pre>div]:bg-bg-300 [&_.ignore-pre-bg>div]:bg-transparent”>
_*]:min-w-0″>

Highlight of the series, the fully motorized dental microscope

As the fourth development stage, the Kaps 1400 represents the top technological model in the Kaps dental microscope series and is based on the proven modular principle.

The innovative motorized zoom enables precise, fully automatic magnification control for maximum efficiency in the treatment process. The advanced Free Motion magnetic brake with integrated balancing device ensures optimal movement and effortless positioning of the microscope. In combination with the high-resolution precision optics and powerful LED lighting technology, the Kaps 1400 dental microscope delivers exceptional, high-contrast, and color-accurate visualization results. This guarantees you, as the practitioner, complete control and maximum precision during all dental procedures.

With the motorized 1:6 zoom, you can continuously adjust various magnifications using the controls integrated in the handle and always have the ideal view of your working field, just as you need it. Optionally, these are also available integrated in a foot switch.

Over 75 years With an eye for detail

The extraordinary precision and attention to detail characterize every Kaps Optik project – a quality that customers and partners around the world appreciate.

The know-how that has grown over 75 years flows into every tailor-made solution, regardless of whether it is a local or international project.

Balancing device

This enables precise positioning of the microscope, even with adapted accessories. It compensates for asymmetrical load distributions without impairing ergonomics.

Innovative LED lighting

The ultra-bright LED lighting offers a higher light intensity, allowing insights into areas that are difficult to see. It ensures a homogeneously illuminated field of vision and better contrast, which guarantees fatigue-free working.

Ergonomic solutions

With the Kaps dental microscopes, we have placed particular emphasis on ergonomics. Dentists in particular often complain of back or neck problems. With the Kaps 45° ergonomic wedge including binocular rotating plate, these are now a thing of the past. You are always in a comfortable and upright, ergonomically correct position and can carry out your daily work much more relaxed.

Apochromatic optics

Apochromatic lenses deliver crystal-clear images with high-resolution details in natural colors. The deviation of red, green and blue light is less than the depth of field of the lens, resulting in an extremely sharp and color-true image.

Free Motion magnetic brake

This innovative technology enables perfect handling of the microscope. The magnetic brake allows precise and effortless positioning of the microscope head, which increases freedom of movement and efficiency during treatment.

Technical details

Overview

At a glance

  • Motorized zoom 1 : 6
  • 0-210° swivel tube with 12.5 eyepieces
  • Lens f = 250 mm with fine focusing (12 mm)
  • Free Motion magnetic brake with balancing device
  • Comfort handles with controls
  • Integrated LED lighting
Datasheet
Magnification
5-step apochromatic magnification changer
Magnification range
1.5x to 40x (depending on the optical components)
Field of view
120 mm to 7 mm (depending on the optical components)
Lighting
Integrated LED lighting Optional: Xenon 180 W (external) Always in conjunction with orange filter and spot lighting
Objectives
With fixed focal length from 100 mm to 400 mm in 50 mm increments (each with fine focusing 12 mm) Kaps-Variflex-100 f = 220 mm – 320 mm (continuously) Vario lens (module 50) f = 200 mm – 400 mm (continuously)
Eyepieces
10 x; 12.5 x; 20 x

Technical drawing

Accessories

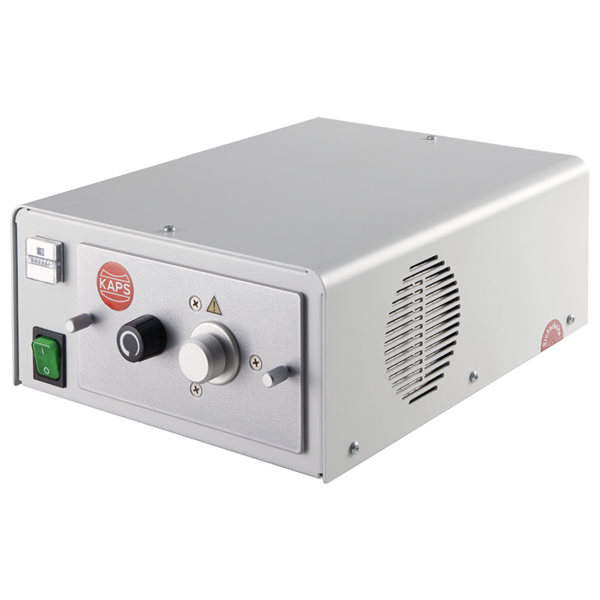

External super-bright light source of best quality and long service life.

Xenonlux 180 Watt

Kaps 45° ergonomic wedge with beam splitter and binocular rotary plate

The unbeatable combination for an optimal viewing angle and comfort at the workplace.

Color your scope

Turn your microscope into an eye-catcher or integrate it perfectly into your practice rooms. Kaps offers a wide range of special paint finishes.

Optical solutions

Kaps-Variflex-100 in compact design

The lens, with a focal length of 220-320 mm, has high-quality apochromatic optics with multiple coating. Retrofitting is very easy. The lens can be replaced in minutes and offers the best ergonomics during treatment.

Kaps vario lens

The lens, with a focal length of 200-400 mm, has high-quality apochromatic optics with multi-layer coating.

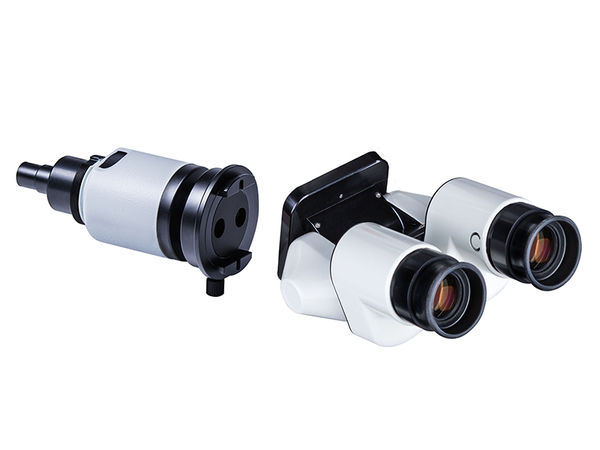

Kaps vario lens

With this tube, your assistant can attend the treatment live and thus gain valuable tips and tricks for their own routine.

Video solutions

Kaps HD photo adapter for SONY NEX-5/-6/-7 and Alpha 5000/6000

HD findings documentation with apochromatic optics for brilliant and true-color images with amazing detail in full format.

Kaps Media Workstation BE

The Kaps Media Workstation BE simplifies everyday practice. It organizes your image and video material easily and efficiently in an electronic patient file. The software is multilingual, self-explanatory and easy to use.

TV Tube

For adaptation of c-mount video cameras.

Kaps HD video camera

Compact High Definition video camera for findings documentation.

45° ergonomic wedge

Tutus unilateral 50:50, 80:20 or bilateral 50:50 / 80:20

Kaps photo tube for DSLR camera (Canon, Nikon)

Multi-coated anti-reflective high end for a full-format, low-distortion and field-flattened digital camera image.

Kaps Ikegami MKC-210 HD

1-CCD camera head of the compact class with medical approval in Full-HD (1,920 x 1,080).

Kaps TFT monitor holder

With the Kaps TFT monitor holder, the screen can be brought into a particularly comfortable position or completely out of the way when it is not needed. (only for rolling stand).
