The Full HD video colposcope for the modern practice
Full HD
Full HD
Autofocus
Autofocus
Video documentation
Video documentation
When documentation is not just an option but a standard, a system is required that is developed from the ground up. The ViCo S HD combines a Full-HD video camera with LED lighting into a compact real-time video device, delivering brilliant images at the highest resolution for reliable diagnoses and effective documentation of findings.
Modern gynaecology demands more than just looking through the eyepiece. Patients wish to understand what the doctor sees. Referrals need visual material. Quality assurance requires documentation.
The ViCo S HD provides all of this, directly on the monitor. The integrated LED lighting ensures a daylight-like colour reproduction. The autofocus keeps the picture sharp without requiring manual intervention. And with the electronic green filter, vascular structures become visible at the push of a button.
When documentation is not just an option but a standard, a system is required that is developed from the ground up. The ViCo S HD combines a Full-HD video camera with LED lighting into a compact real-time video device, delivering brilliant images at the highest resolution for reliable diagnoses and effective documentation of findings.
Modern gynaecology demands more than just looking through the eyepiece. Patients wish to understand what the doctor sees. Referrals need visual material. Quality assurance requires documentation.
The ViCo S HD provides all of this, directly on the monitor. The integrated LED lighting ensures a daylight-like colour reproduction. The autofocus keeps the picture sharp without requiring manual intervention. And with the electronic green filter, vascular structures become visible at the push of a button.
80 Years with an Eye for Detail
The exceptional precision and attention to detail characterise every project from Kaps Optik, a quality appreciated by clients and partners worldwide.
Over 75 years of accumulated expertise is incorporated into every bespoke solution, whether for local or international projects.
Full-HD Image Quality for Secure Diagnoses
The ViCo S HD was specifically developed for video documentation. No retrofitted cameras, no compromise; it's an integrated system that delivers Full-HD quality.
1920 x 1080 Pixels
True Full-HD in every capture. The high resolution makes details visible that would be lost with lower resolutions. Epithelial changes, vascular structures, and fine textures are easily recognisable,
Video Standard up to 1080p/60
60 frames per second ensure smooth display without stuttering. Movements are naturally reproduced, facilitating real-time assessment.
10x Optical Zoom
The optical zoom operates without loss. Enlarge the image without sacrificing quality. From overview to detail, the sharpness remains intact.
6x Digital Zoom
For maximum magnification, a 6x digital zoom is additionally available. Combined with the optical zoom, you can achieve up to 120-fold magnification.
DVI/HDMI Outputs
The digital interfaces allow connection to any modern monitor. No quality loss through analogue transmission.
Still Image Function
With a button press, the current image is frozen, ideal for documentation or discussion with the patient.
Electronic Green Filter
The green filter is activated electronically. No mechanical swivelling, no delay. A button press is sufficient to highlight vascular structures.
Full-HD Image Quality for Secure Diagnoses
The ViCo S HD was specifically developed for video documentation. No retrofitted cameras, no compromise; it's an integrated system that delivers Full-HD quality.
1920 x 1080 Pixels
True Full-HD in every capture. The high resolution makes details visible that would be lost with lower resolutions. Epithelial changes, vascular structures, and fine textures are easily recognisable,
Video Standard up to 1080p/60
60 frames per second ensure smooth display without stuttering. Movements are naturally reproduced, facilitating real-time assessment.
10x Optical Zoom
The optical zoom operates without loss. Enlarge the image without sacrificing quality. From overview to detail, the sharpness remains intact.
6x Digital Zoom
For maximum magnification, a 6x digital zoom is additionally available. Combined with the optical zoom, you can achieve up to 120-fold magnification.
DVI/HDMI Outputs
The digital interfaces allow connection to any modern monitor. No quality loss through analogue transmission.
Still Image Function
With a button press, the current image is frozen, ideal for documentation or discussion with the patient.
Electronic Green Filter
The green filter is activated electronically. No mechanical swivelling, no delay. A button press is sufficient to highlight vascular structures.
Full-HD Image Quality for Secure Diagnoses
The ViCo S HD was specifically developed for video documentation. No retrofitted cameras, no compromise; it's an integrated system that delivers Full-HD quality.
1920 x 1080 Pixels
True Full-HD in every capture. The high resolution makes details visible that would be lost with lower resolutions. Epithelial changes, vascular structures, and fine textures are easily recognisable,
Video Standard up to 1080p/60
60 frames per second ensure smooth display without stuttering. Movements are naturally reproduced, facilitating real-time assessment.
10x Optical Zoom
The optical zoom operates without loss. Enlarge the image without sacrificing quality. From overview to detail, the sharpness remains intact.
6x Digital Zoom
For maximum magnification, a 6x digital zoom is additionally available. Combined with the optical zoom, you can achieve up to 120-fold magnification.
DVI/HDMI Outputs
The digital interfaces allow connection to any modern monitor. No quality loss through analogue transmission.
Still Image Function
With a button press, the current image is frozen, ideal for documentation or discussion with the patient.
Electronic Green Filter
The green filter is activated electronically. No mechanical swivelling, no delay. A button press is sufficient to highlight vascular structures.
LED Lighting and Intelligent Autofocus
Brilliant images require brilliant light. The ViCo S HD combines super-bright LED lighting with intelligent autofocus, ensuring an image that's always sharp and perfectly lit.

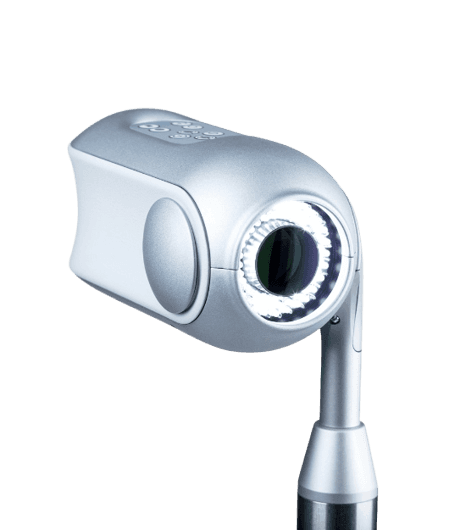

Super-Bright LED Ring
The integrated LED ring with a colour temperature of 5800 K delivers daylight quality. Anatomical structures are displayed in natural colours. No colour shifts, no distortions.
Uniform Illumination
The ring-shaped design provides shadow-free, even illumination across the entire field of view. No dark corners, no overexposure in the centre.
50,000 Hours Lifespan
The LED technology is designed for longevity. No bulb replacements, no downtime. The ViCo S HD operates reliably day in, day out.
Low Heat Generation
Despite high light intensity, heat generation remains minimal. No discomfort for the patient, no stress on sensitive tissue.
Low Power Consumption
LED lighting is energy-efficient. Operating costs remain low, and the ecological footprint is small.
Automatic Focusing
The ViCo S HD automatically focuses on the examination area. Changes in working distance are detected and compensated for without your intervention.
Working Distance 250-350 mm
The optimal focus range covers all typical examination situations. The image remains sharp, regardless of whether the patient is positioned closer or further away.
Manual Override
If the autofocus does not deliver the desired result, you can take over manually. Switching is done at the push of a button.
No Delay
The autofocus works in real-time. No waiting time, no searching movements in the image. Sharpness follows the examination.
LED Lighting and Intelligent Autofocus
Brilliant images require brilliant light. The ViCo S HD combines super-bright LED lighting with intelligent autofocus, ensuring an image that's always sharp and perfectly lit.
Super-Bright LED Ring
The integrated LED ring with a colour temperature of 5800 K delivers daylight quality. Anatomical structures are displayed in natural colours. No colour shifts, no distortions.
Uniform Illumination
The ring-shaped design provides shadow-free, even illumination across the entire field of view. No dark corners, no overexposure in the centre.
50,000 Hours Lifespan
The LED technology is designed for longevity. No bulb replacements, no downtime. The ViCo S HD operates reliably day in, day out.
Low Heat Generation
Despite high light intensity, heat generation remains minimal. No discomfort for the patient, no stress on sensitive tissue.
Low Power Consumption
LED lighting is energy-efficient. Operating costs remain low, and the ecological footprint is small.
Automatic Focusing
The ViCo S HD automatically focuses on the examination area. Changes in working distance are detected and compensated for without your intervention.
Working Distance 250-350 mm
The optimal focus range covers all typical examination situations. The image remains sharp, regardless of whether the patient is positioned closer or further away.
Manual Override
If the autofocus does not deliver the desired result, you can take over manually. Switching is done at the push of a button.
No Delay
The autofocus works in real-time. No waiting time, no searching movements in the image. Sharpness follows the examination.
LED Lighting and Intelligent Autofocus
Brilliant images require brilliant light. The ViCo S HD combines super-bright LED lighting with intelligent autofocus, ensuring an image that's always sharp and perfectly lit.
Super-Bright LED Ring
The integrated LED ring with a colour temperature of 5800 K delivers daylight quality. Anatomical structures are displayed in natural colours. No colour shifts, no distortions.
Uniform Illumination
The ring-shaped design provides shadow-free, even illumination across the entire field of view. No dark corners, no overexposure in the centre.
50,000 Hours Lifespan
The LED technology is designed for longevity. No bulb replacements, no downtime. The ViCo S HD operates reliably day in, day out.
Low Heat Generation
Despite high light intensity, heat generation remains minimal. No discomfort for the patient, no stress on sensitive tissue.
Low Power Consumption
LED lighting is energy-efficient. Operating costs remain low, and the ecological footprint is small.
Automatic Focusing
The ViCo S HD automatically focuses on the examination area. Changes in working distance are detected and compensated for without your intervention.
Working Distance 250-350 mm
The optimal focus range covers all typical examination situations. The image remains sharp, regardless of whether the patient is positioned closer or further away.
Manual Override
If the autofocus does not deliver the desired result, you can take over manually. Switching is done at the push of a button.
No Delay
The autofocus works in real-time. No waiting time, no searching movements in the image. Sharpness follows the examination.
Full HD Picture Quality
1920 x 1080 pixels, up to 1080p/60. Every detail is captured, every structure is recognisable. The high resolution ensures no compromise even with significant magnification.
Zoom up to 120x
10x optical zoom system combined with 6x digital zoom. From full overview to the smallest detail with just the press of a button.
Autofocus
The image remains sharp even if the working distance changes. Optionally manually overridable for specific needs.
Electronic Green Filter
No more mechanical swinging. The electronic green filter is activated at the press of a button, highlighting vascular structures.
Daylight Quality LED Illumination
The super bright LED ring with a colour temperature of 5800 K ensures uniform lighting. Approximately 50,000 hours lifespan, low heat generation.
Variable Working Distance
From 250 to 350 mm- The ViCo S HD is always in focus, no matter how the patient is positioned.
Technical Details
At a Glance
Image Resolution: 1920 x 1080 pixels (Full HD)
Image Format: 16:9
Video Standard: up to 1080p/60
Video Outputs: DVI / HDMI
Magnification: up to 120x (optical 10x, digital 6x)
Working Distance: 250-350 mm
Lighting: Super bright LED ring, 5800 K
Filter: Electronic green filter
Focusing: automatic or manual
Mains Connection: 90-240V AC, 50/60Hz
Weight: approx. 45 kg
